A 75,000SF CONTEMPORARY ART MUSEUM FOR YALE UNIVERSITY New Haven, CT, USA
Critic: Peter de Bretteville (Mark Gage, Coordinator)
YSOA M. Arch 1 program fall '10: term 3

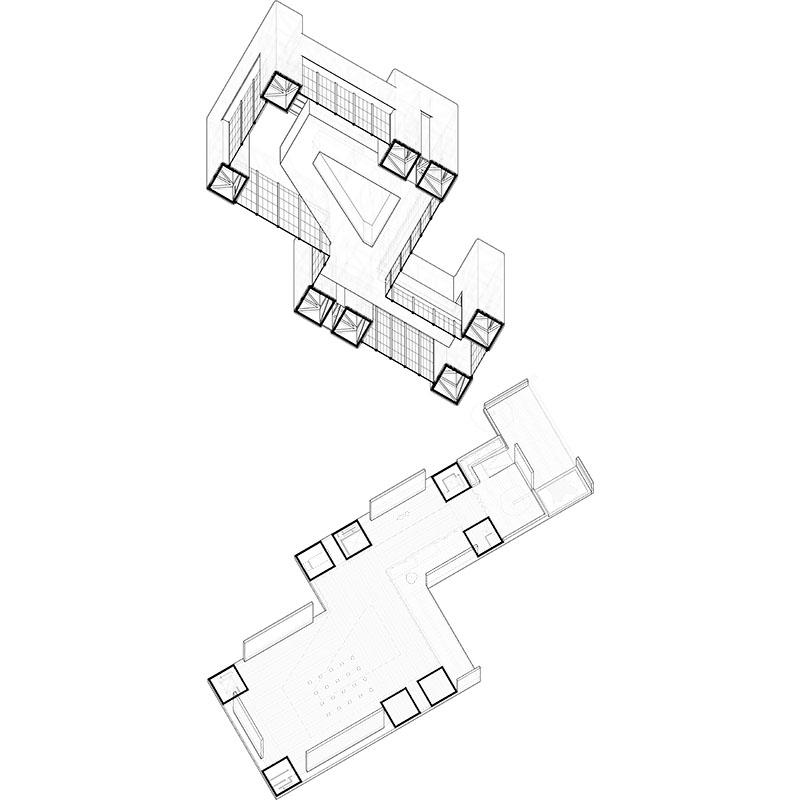

axonometric drawing
bird's eye and worm's eye

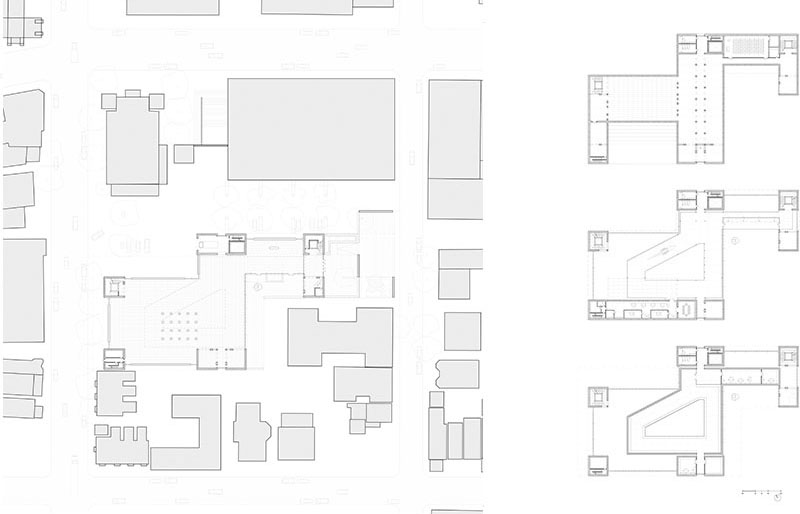

plans

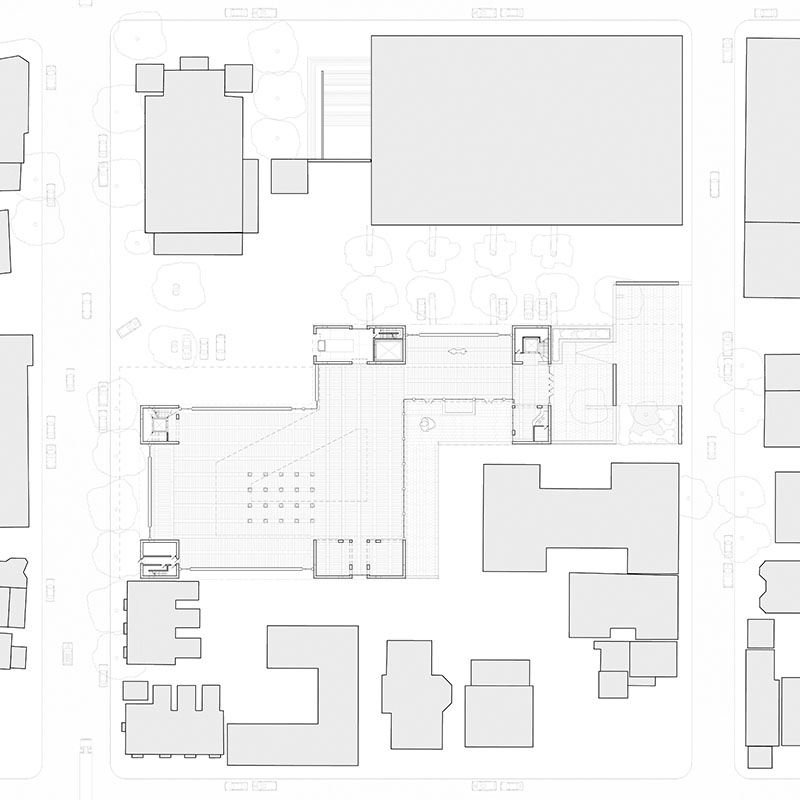

plan
street level
perspective rendering
view from High St.
Elevation

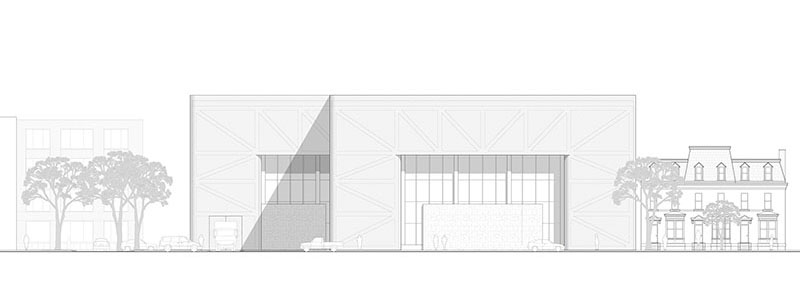

York St. frontage

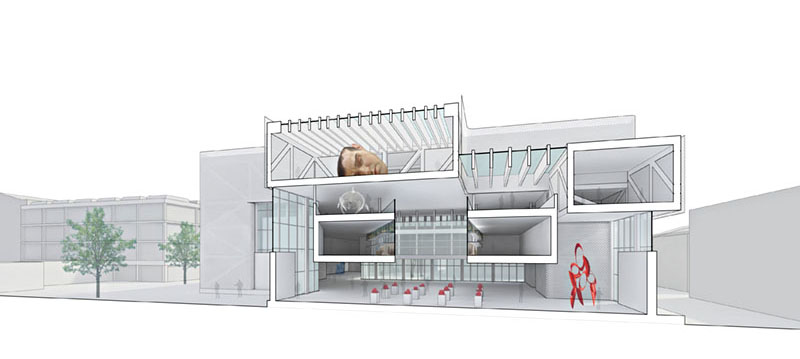

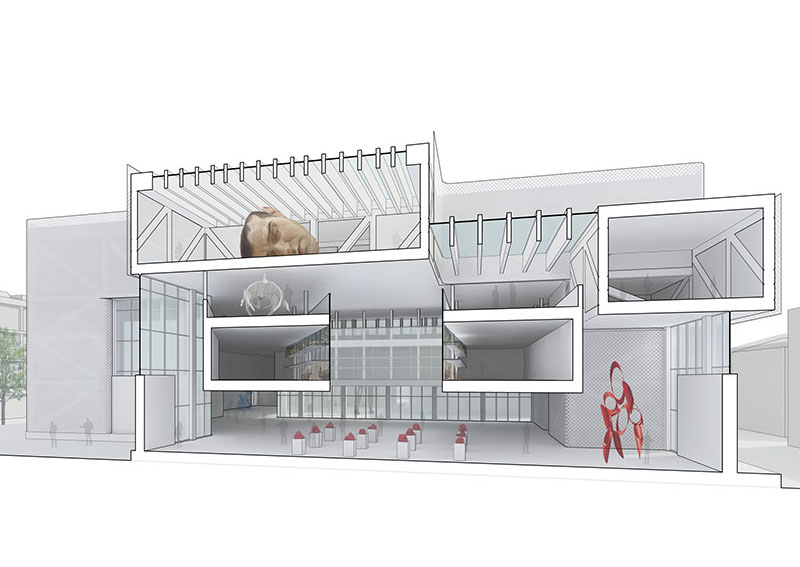

perspective section
perspective section
detail
perspective rendering
inside monumental gallery
perspective rendering
above hanging storage ring

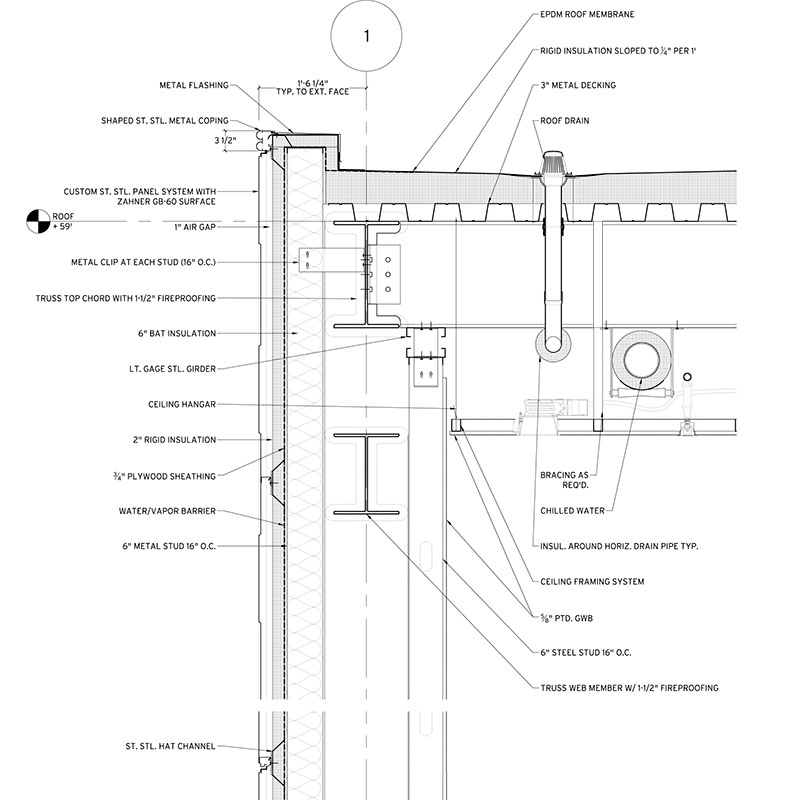

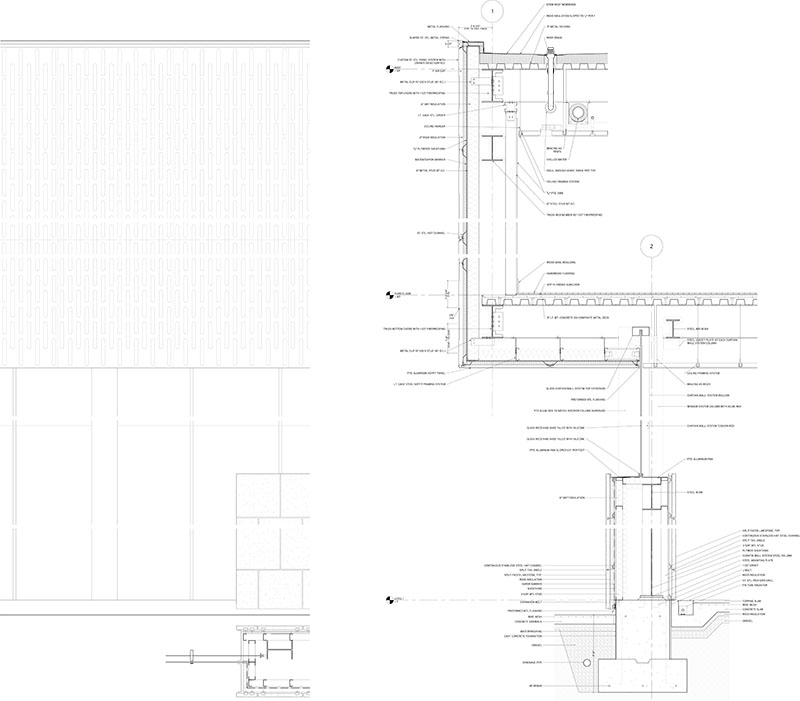

exterior envelope elev. & section
developed for "Systems Integration"
exterior envelope elev. & section
developed for "Systems Integration"

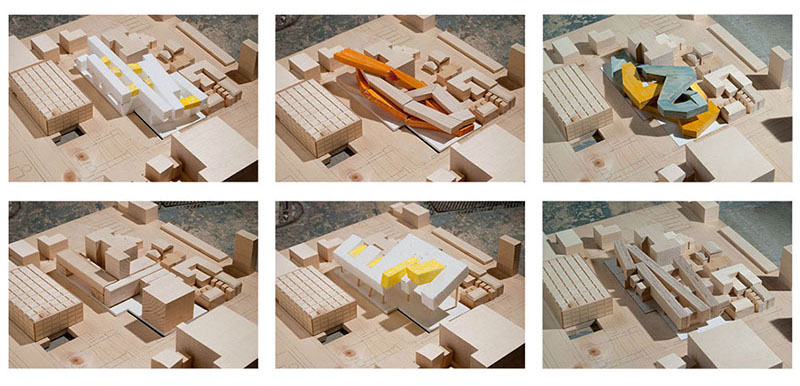

study models
massing strategies
perspective rendering
inside first gallery / event space
